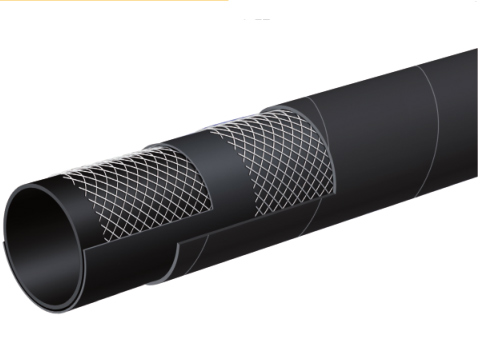

SAE 100R3 FIBER BRAIDED HYDRAULIC HOSE

Technical Parameter



SIZE
(Dash)

SIZE
(in.)

  I.D.
(mm)

O.D.
(mm)

Max.W.P.

Min.B.P..

MinB.R..

Min

Max

Max

(MPa)

(MPa)

(mm)

3

3/16

4.5

5.4

13.5

10.5

42

75

4

1/4

6.1

7.0

15.1

8.7

34.8

75

5

5/16

7.6

8.5

18.3

8.4

33.6

100

6

3/8

9.2

10.1

19.8

7.8

31.2

100

8

1/2

12.4

13.5

24.6

7

28

125

10

5/8

15.6

16.7

27.8

6.1

24.4

140

12

3/4

18.7

19.8

32.5

5.2

20.8

150

16

1

25.1

26.2

39.3

3.9

15.6

205

20

1 1/4

31.4

32.9

46.0

2.6

10.4

250
