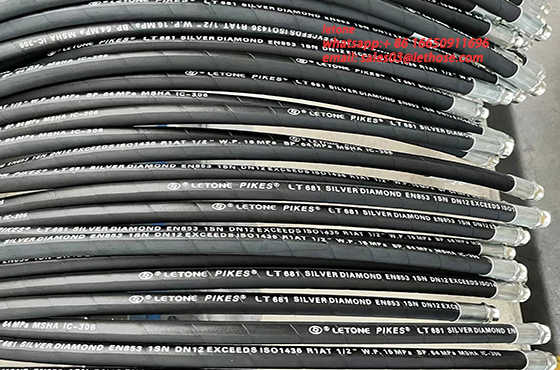

Steel wire braided hydraulic hose is a type of hydraulic hose with reinforcement of high tensile steel wire braid. It is designed to transfer fluids in hydraulic machinery and systems under high pressure, such as construction equipment, mining machinery, and agricultural machinery. The steel wire braided hydraulic hose has high strength and abrasion resistance, making it ideal for harsh operating conditions.

Construction of Steel Wire Braided Hydraulic Hose:

The steel wire braided hydraulic hose consists of multiple layers of materials, each serving a specific purpose. These layers include:

1. Inner Tube: The inner tube is typically made from synthetic rubber, which is oil-resistant and heat-resistant. This layer is responsible for conveying the fluid through the hose while protecting the reinforcement layer from exposure to the fluid.
2. Reinforcement Layer: The reinforcement layer is made of high tensile steel wire braid, which provides the hose with its strength and increases its resistance to deformation when subjected to high pressure.
3. Outer Cover: The outer cover is made of synthetic rubber or thermoplastic material, which protects the hose from external damage such as abrasion, ozone, and weathering.

Types of Steel Wire Braided Hydraulic Hoses:

There are two main types of steel wire braided hydraulic hoses:

1. One-Wire Braid Hydraulic Hose: This type of hose has one layer of high tensile steel wire braid as reinforcement, which provides moderate pressure capability and flexibility. It is commonly used in low to medium pressure hydraulic systems.
2. Two-Wire Braid Hydraulic Hose: This type of hose has two layers of high tensile steel wire braid as reinforcement, which provides higher pressure capability and improved flexibility compared to one-wire braid hydraulic hoses. It is commonly used in high-pressure hydraulic systems.

Advantages of Steel Wire Braided Hydraulic Hose:

1. High Pressure Capability: Steel wire braided hydraulic hoses have high pressure capability, making them suitable for use in high-pressure hydraulic systems.
2. Abrasion Resistance: The steel wire reinforcement layer provides the hose with high abrasion resistance, making it ideal for use in harsh operating conditions such as construction and mining machinery.
3. Flexibility: Steel wire braided hydraulic hoses have excellent flexibility, which allows them to bend and twist without kinking or collapsing, making them easy to route and install.
4. Temperature Range: Steel wire braided hydraulic hoses can operate in a wide range of temperatures, from -40°C to +100°C, making them suitable for use in extreme hot or cold environments.
5. Long Service Life: Steel wire braided hydraulic hoses are designed for long service life, even under heavy use and harsh operating conditions.

Applications of Steel Wire Braided Hydraulic Hose:

Steel wire braided hydraulic hoses are used in a variety of applications, including:

1. Construction Equipment: Steel wire braided hydraulic hoses are used in construction equipment such as excavators, loaders, bulldozers, and cranes.
2. Mining Machinery: Steel wire braided hydraulic hoses are used in mining machinery such as drilling rigs, rock drills, and tunneling machines.
3. Agricultural Machinery: Steel wire braided hydraulic hoses are used in agricultural machinery such as tractors, harvesters, and irrigation systems.
4. Industrial Machinery: Steel wire braided hydraulic hoses are used in industrial machinery such as hydraulic presses, injection molding machines, and machine tools.

In conclusion, steel wire braided hydraulic hoses are an essential component in hydraulic systems, providing high pressure capability, abrasion resistance, flexibility, and long service life. When selecting a steel wire braided hydraulic hose, it is important to consider factors such as the type of reinforcement, temperature range, pressure rating, and application requirements. It is also essential to ensure that the hose meets industry standards and regulations for safety and performance.
