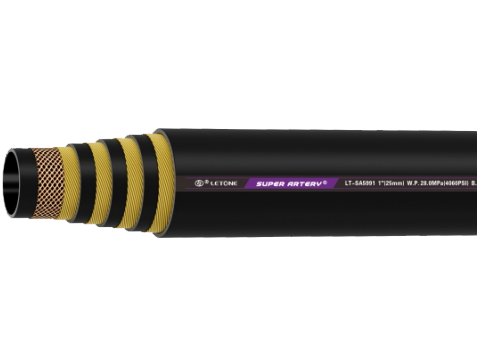

Super Artery EXCEEDS ISO18752 DC
LT SA5993-Super Artery EXCEEDS ISO18752 DC
Technical Parameter
model |
ISO18752 |
Inner diameter of hose |
Outer diameter of hose |
Working pressure |
Minimum burst pressure |
Minimum bending radius（mm) |
radius (mm) Weight |
Connector series |
||
5993 standard tube |
5993AR wear-resistant pipe AR |
5993SAR super wear-resistant tube |
||||||||
SA5993-1/4"-4 |
BC |
CC |
CC |
6.3 |
13 |
42 |
168 |
50 |
0.384 |
41 series |
SA5993-1/4"-4 |
DC |
DC |
DC |
6.3 |
15 |
45 |
180 |
50 |
0.428 |
41 series |
SA5993-5/16"-4 |
DC |
DC |
DC |
8 |
16.3 |
45 |
180 |
60 |
0.479 |
41 series |
SA5993-3/8"-4 |
DC |
DC |
DC |
10 |
18.7 |
45 |
180 |
70 |
0.591 |
41 series |
SA5993-1/2"-4 |
DC |
DC |
DC |
13 |
22.8 |
45 |
180 |
140 |
0.701 |
41 series |
SA5993-5/8"-4 |
DC |
DC |
DC |
16 |
27 |
45 |
180 |
180 |
1.017 |
41 series |
SA5993-3/4"-4 |
DC |
DC |
DC |
19 |
30.8 |
42 |
168 |
220 |
1.383 |
41 series |
SA5993-1"-4 |
DC |
DC |
DC |
25 |
38 |
42 |
168 |
250 |
1.928 |
41 series |
SA5993-11/4"-6 |
DC |
DC |
DC |
32 |
44.5 |
42 |
168 |
400 |
3.626 |
61 series |
SA5993-11/2"-6 |
DC |
DC |
DC |
38 |
52.5 |
42 |
168 |
480 |
4.404 |
61 series |
SA5993-2"-6 |
DC |
DC |
DC |
51 |
66.5 |
42 |
168 |
650 |
6.33 |
61 series |
