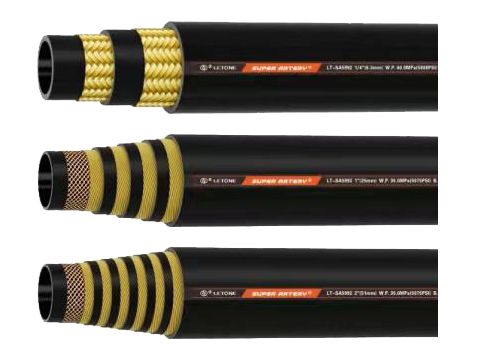

Super Artery wire braided hose
LTSA699-Super Artery wire braided hose
Technical Parameter
|
TYPE |
SIZE |
I.D. |
Max.W.P. |
Min.B.P. |
Min.B.R. |
(in.) |
(mm) |
(MPa) |
(MPa) |
(mm) |
|
|
LTSA699-1BC/CS |
1/4" |
6.4 |
29.5 |
118 |
40 |
|
LTSA699-1BC/CS |
5/16" |
7.9 |
25 |
100 |
55 |
|
LTSA699-1BC/CS |
3/8" |
9.5 |
23 |
92 |
65 |
|
LTSA699-1BC/CS |
1/2" |
12.7 |
20 |
80 |
80 |
|
LTSA699-1BC/CS |
5/8" |
15.9 |
15 |
60 |
105 |
|
LTSA699-1BC/CS |
3/4" |
19 |
14 |
56 |
120 |
|
LTSA699-1BC/CS |
1" |
25.4 |
11 |
44 |
160 |
|
LTSA699-1BC/CS |
11/4" |
31.8 |
10 |
40 |
300 |
|
LTSA699-1BC/CS |
11/2" |
38.1 |
5 |
20 |
480 |
|
LTSA699-1BC/CS |
2" |
50.8 |
4 |
16 |
560 |
|
LTSA699-2BC/CS |
1/4" |
6.4 |
42 |
168 |
55 |
|
LTSA699-2BC/CS |
5/16" |
7.9 |
38 |
152 |
60 |
|
LTSA699-2BC/CS |
3/8" |
9.5 |
35 |
140 |
70 |
|
LTSA699-2BC/CS |
1/2" |
12.7 |
31 |
124 |
110 |
|
LTSA699-2BC/CS |
5/8" |
15.9 |
28 |
112 |
130 |
|
LTSA699-2BC/CS |
3/4" |
19 |
25 |
100 |
160 |
|
LTSA699-2BC/CS |
1" |
25.4 |
21 |
84 |
210 |
|
LTSA699-2BC/CS |
11/4" |
31.8 |
16.5 |
66 |
250 |
|
LTSA699-2BC/CS |
11/2" |
38.1 |
13.5 |
54 |
300 |
|
LTSA699-2BC/CS |
2" |
50.8 |
8 |
32 |
610 |
